Series 917
 TO Sockets
 Solder Tail

Series 917 TO package sockets exist with 3, 4, 8 and 10 contacts. Two 8 pin versions feature pin centers either on a 5.08 mm or
a 5.84 mm circle Insertion characteristics: 4-finger standard

Platings Sleeve Clip Pin Ordering information
  replace xx with the number of poles, e.g.
917-xx-103-41-005917-99-103-41-005
with 5 mm tin on sleeve and clip
90
91
93
97

 5 mm Sn Pb
5 mm Sn Pb
5 mm Sn Pb
5 mm Sn Pb 		0.25µm    Au
0.75µm    Au
GoldFlash
5µm     Sn Pb

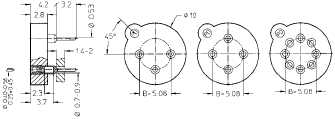

917-xx-103-41-005 917-xx-104-41-005 917-xx-108-41-005 Series 917 sockets for TO 5 pack- age Contacts arranged on 5.08 mm circle diameter
917-xx-208-41-005 917-xx-210-41-005 Series 917 sockets for TO 100 package Contacts arranged on 5.84 mm circle diameter
