Series 546
 Pin grid array sockets
Press -fit terminations

Pin Grid Array sockets with press-fit terminations PGA sockets are high density connecting devices equipped with machined precision contacts with soft contact clips assuring low insertion/withdrawal forces. Over 200 standard pinouts are available; inquiries for custom varieties are welcome New compliant press-fit terminations with modified eye of the needle for solderless mount into PCBs with through plated holes guarantee gas-tight contact zones Insertion characteristics: 6 finger low force

Platings Sleeve Clip Pin Ordering information Replace xxx-xx-xxx with the number of poles, body
 size  and layout numbers as indicated on pages
88 to 92. For
example, a 12´12 pin configuration with window and
108 standard soldering contacts
 becomes: 546-93-108-12-101-028
91
93
99		 5µm     Sn
5µm     Sn
5µm     Sn
 0.25µm    Au
0.75µm    Au
5µm     Sn pb

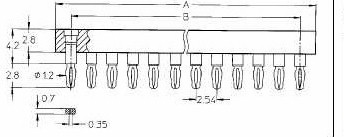

546-91-xxx-xx-xxx-036 546-93-xxx-xx-xxx-036 546-99-xxx-xx-xxx-036 PGA sockets with press-fit
terminations for 1.5 to
2.0 mm PCB thickness.
Hole diameter 1
 (+0.09/–0.06) mm

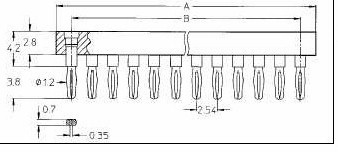

546-91-xxx-xx-xxx-035 546-93-xxx-xx-xxx-035 546-99-xxx-xx-xxx-035 PGA sockets with press-fit
 termi nations for 2.1
 to 3.2 mm PCB
thickness. Hole diameter 1 (+0.09/–0.06) m
